VSA 05 2N VRT

€ 557.28

in stock
Three Phase
I-Oper Max 20 A
Motor Power 12.4 kW
LRA Max 100 A
I-Start Max 30 A
Separate Circuit for Thermal Fuse

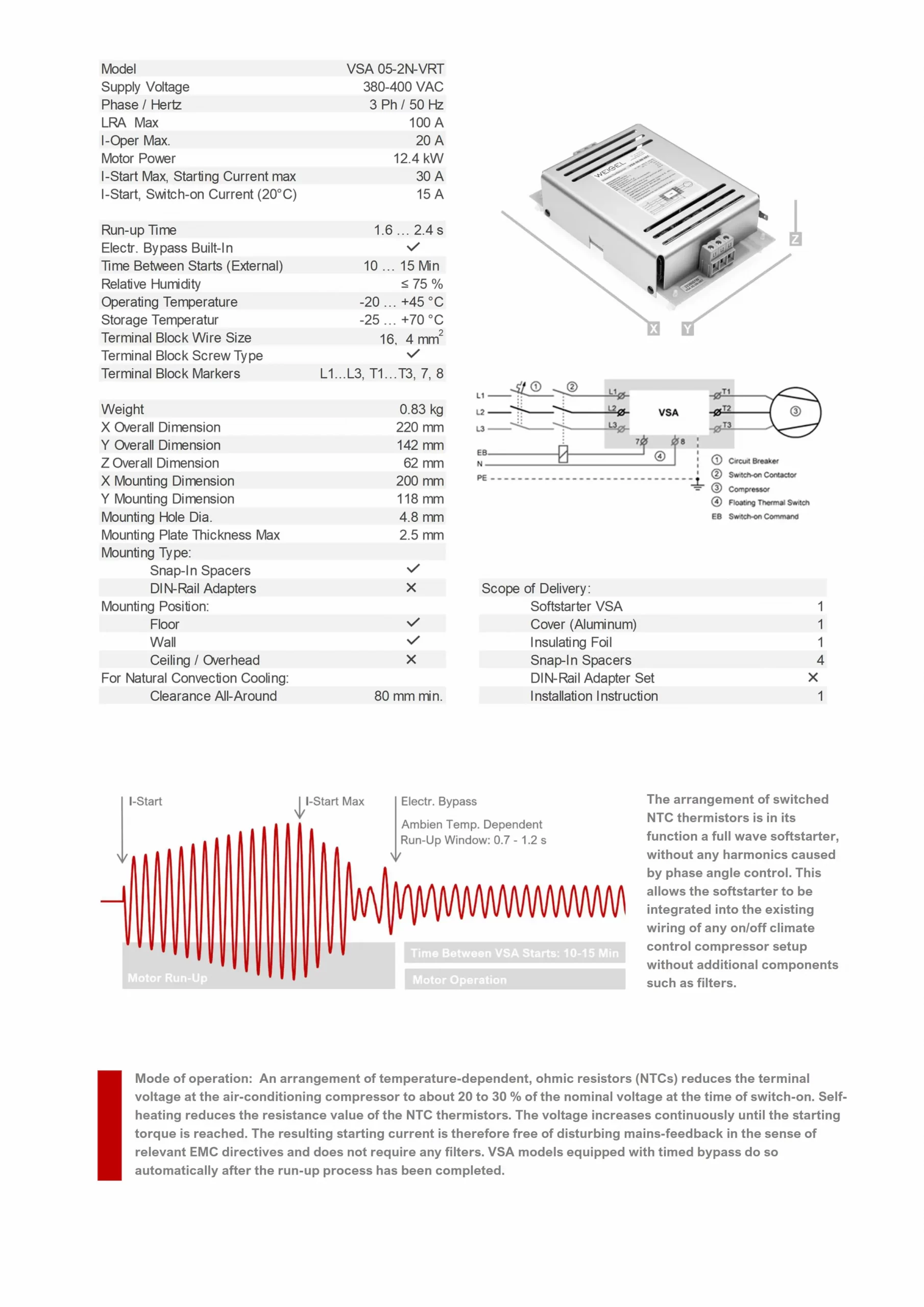

Product Information
Installation Instructions
100% Net Purity

Thanks to the NTC technology, the current remains sinusoidal during the entire starting process. The resistive current limiting is principally free from disturbances, flicker, harmonics and transients.

Price advantage

We as a team invest by tradition and conviction in an unparalleled quality control and thus create a high-quality product with above-average service life. In addition, the acquisition costs are lower by a factor of 1.5 to 4.0 than alternative compressor starters.

Plug & Play

The VSA is installed directly in the motor supply line without additional elements. It does not have to be configured or retracted. It is therefore also ideal for retrofitting.

Due to the line-feedback-free starting technology, there is no steep-flank electrosmog whatsoever. This allows the use of unshielded cables and eliminates the need to install expensive line filters or AC/DC sensitive residual current devices.

Lifetime

Due to the robust and compact design, our devices are maintenance-free and durable. Semiconductors that are susceptible to interference have been deliberately omitted. In addition, our VSA is protected against external transients Burst EN 61000-4-4 and Surge EN 61000-4-5. Therefore, we provide a 5-year 100% warranty on our entire VSA line.

Durch den sanften Anlauf wird der Kompressormotor geschont. Die reduzierten Vibrationen wirken sich positiv auf die angebauten und angeschlossenen Komponenten aus.

NTC technology

With the VSA, the NTC technology proportionally reduces the full AC current at all times. This results in a pure sine wave during the entire starting phase. Afterwards, the power section of the VSA is completely bypassed. The result is loss-free operation and an optimized on/off switch.
